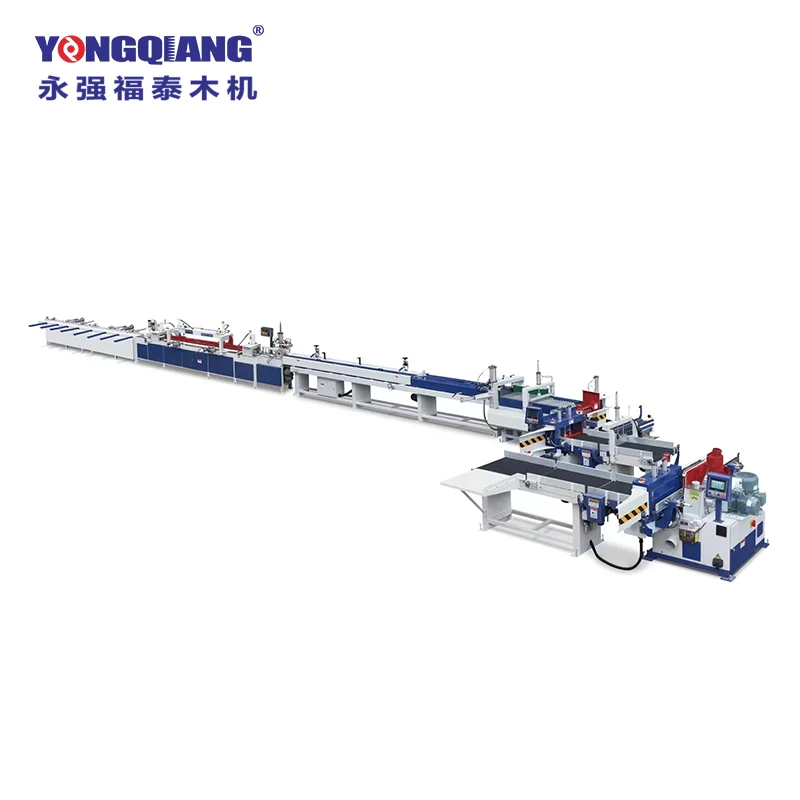

Automated Endless Timber Finger Joint Processing Production System
In the pursuit of maximizing lumber utilization and streamlining production, the implementation of continuous finger jointing technology has become a cornerstone of efficient wood product manufacturing. Our Automated Endless Timber Finger Joint Processing Production System is engineered to deliver uncompromised quality and speed. It effortlessly integrates with other cutting-edge equipment, including the Full Auto Unlimited Length Wood Tenon Splicing Assembly Line for automated feeding and discharge. The system's core technology is complemented by the Uninterrupted Long-Size Wooden Tenon Joint Fully Automatic Line, which guarantees a flawless tenon profile for strong bonds. For operations requiring precise interlock fabrication, the Auto Continuous Length Wood Interlock Tenon Fabrication Line provides unmatched accuracy. Furthermore, the Complete Automatic Infinite Timber Finger Joint Assembly Equipment rounds out a fully integrated factory setup, handling the final assembly with minimal human intervention. These systems collectively minimize material waste, reduce labor costs, and ensure consistent output quality across high-volume production shifts. The seamless synchronization between units allows for continuous operation, transforming raw short blocks into premium endless lumber within a single, automated workflow. Advanced sensor arrays monitor joint integrity in real time, automatically adjusting pressure and alignment to maintain structural perfection.
The Automated Endless Timber Finger Joint Processing Production System distinguishes itself through its modular design and intelligent control architecture. It converts short, trimmed blocks into high-strength, continuous-length lamina suitable for solid wood furniture, laminated beams, and construction components. The machine's heart is a precision-machined shuttle that clamps, aligns, and applies the perfect amount of glue before pressing the finger joints together under precise hydraulic pressure. An integrated CNC scoring saw and shaping unit ensure that each finger profile is identical, delivering a bond strength that often exceeds that of the virgin wood. The electrical cabinet features a dust-proof cooling system and remote diagnostic capabilities, minimizing downtime. A centralized lubrication network automatically greases all critical bearings and slides at programmed intervals. The infeed conveyor includes an auto-reject chute for undersized or damaged blocks, preventing defects from entering the production stream. Below are the comprehensive technical parameters and standout features of this robust system.
Product Specifications
| Parameter | Specification |
|---|---|
| Maximum Working Width | 300 mm |
| Maximum Working Thickness | 50 mm |
| Feeding Length Range | 150 – 600 mm |
| Output Length | Unlimited (Endless) |
| Production Speed | 10 – 30 m/min |
| Installed Power | 48 kW |
| Hydraulic System Pressure | 14 MPa |
| Air Consumption (at 0.6 MPa) | 0.1 m³/min |
| Finger Cutter Spindle Motor | 15 kW, 6000 RPM |
| Glue Application Method | High-frequency or PVA hot-melt |
| Control System | PLC with 10" touch screen HMI |
| Machine Dimensions (L×W×H) | 14,000 × 2,800 × 2,100 mm |
| Net Weight | 6,200 kg |
- Heavy-duty welded steel frame with vibration-damping pads ensures long-term geometric stability.
- Servo-driven feeding and positioning system achieves block alignment accuracy of ±0.2 mm.
- Dual-pressure hydraulic clamping sequence prevents fiber crushing during the pressing cycle.
- Automatic starch or polyurethane glue scraping and recycling reduces adhesive waste by up to 15%.
- Multi-language touch-screen interface stores up to 200 recipe profiles for different wood species and moisture contents.
- Integrated safety light curtains and emergency stop bars comply with CE and ANSI standards.
- Optional outfeed stacking and cross-cutting modules create a complete in-line solution.
- Smoke and spark detectors in the electrical enclosure with automatic CO₂ fire suppression readiness.
