Fully Automatic Infinitely Long Finger Jointing Production Lines

The fully automatic infinitely long finger jointing production lines FJL150-8SV developed by Yongqiang Futai features servo drive and a comprehensive upgrade of the infinite-length tooth joint configuration. It offers highly automated production: simple operation, automatic material conveying, automatic comb-tooth gluing, unlimited length setting, and automatic output of processed boards. Only two workers are needed, one for loading and the other for unloading, with all processes completed automatically in the production line.

Core strengths

This production line has 6 major functional features:

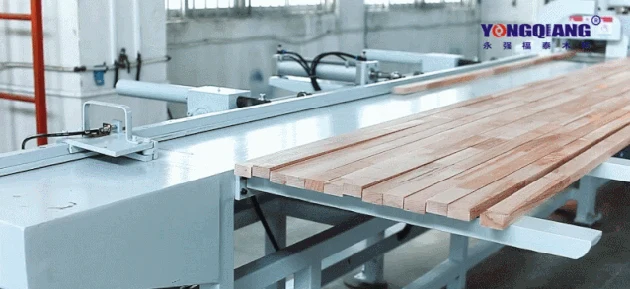

1. Automatic conveying, without human intervention: Belt conveyor transportation, dual-section conveying platform for continuous unit feeding, multiple rows of materials are directly pushed together in a straight line, uninterrupted storage and conveying, high efficiency.

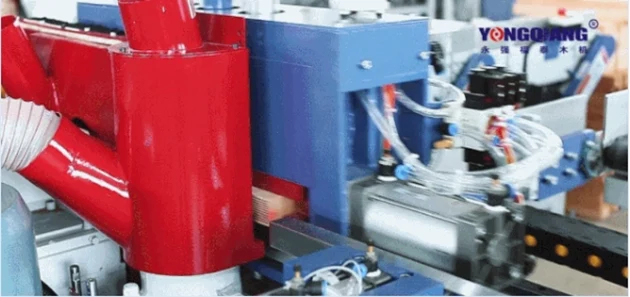

2. Servo drive, efficient comb teeth: Servo motor drive, precise positioning, achieving efficient comb teeth. Compared with ordinary motor drive, the production efficiency is increased by more than 25%.

3. Automatic glue application, saving glue and being environmentally friendly: The automatic glue application system synchronizes the feed speed with the worktable, thereby increasing the utilization rate of glue and being both environmentally friendly and cost-effective.

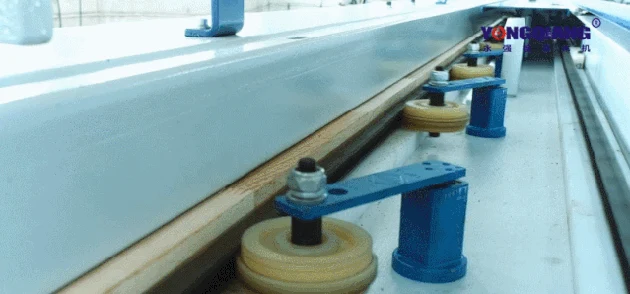

4. Chain conveyor, quick connection: With the chain conveyor configuration, adding anti-skid wheels can prevent the chain from deviating, ensuring the stable, smooth, and efficient transportation of the wood.

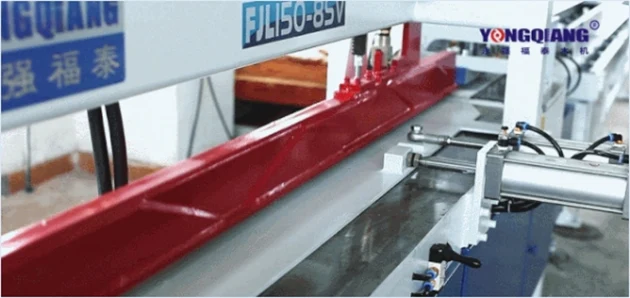

5. Automatic compression fitting, precise fit: Fully automatic hydraulic tooth connection ensures precise tooth connection process for wood materials; the sensitivity of the compression action is high, guaranteeing production output.

6. Precise and flexible sawing: You can set the length of the wood at will, ensuring that the final joint length of the product remains consistent. The operation process is more flexible and precise.

Product Parameters

Application field

Production of building structural materials

Fully Automatic Infinitely Long Finger Jointing Production Lines is specially suitable for beam and column materials required for large-span timber structures, meeting the modern demand for large-size structural materials in timber structures without the need for steel joints or additional connectors.

Furniture manufacturing industry

Provide seamless long boards for high-end furniture enterprises, eliminate traditional splicing marks, and enhance product aesthetics and value. Especially suitable for the production of conference tables, counters, benches and other products.

Interior decoration field

Produce ultra long wooden flooring, wall panels, ceilings, and decorative lines to reduce installation joints and create a continuous and unified visual effect.

customized service

Provide personalized design solutions based on the customer's existing factory layout, production needs, and material characteristics to ensure perfect integration of the production line with existing equipment.

Training and Support

Provide comprehensive operation and maintenance training for each customer, including on-site guidance and remote teaching resources. Provide multilingual operation manuals and video tutorials.

Welcome to order

Welcome to order Yongqiang's fully automatic infinite length gear connection production line. We will provide customized production line configuration solutions and factory layout suggestions. We look forward to working with you.
