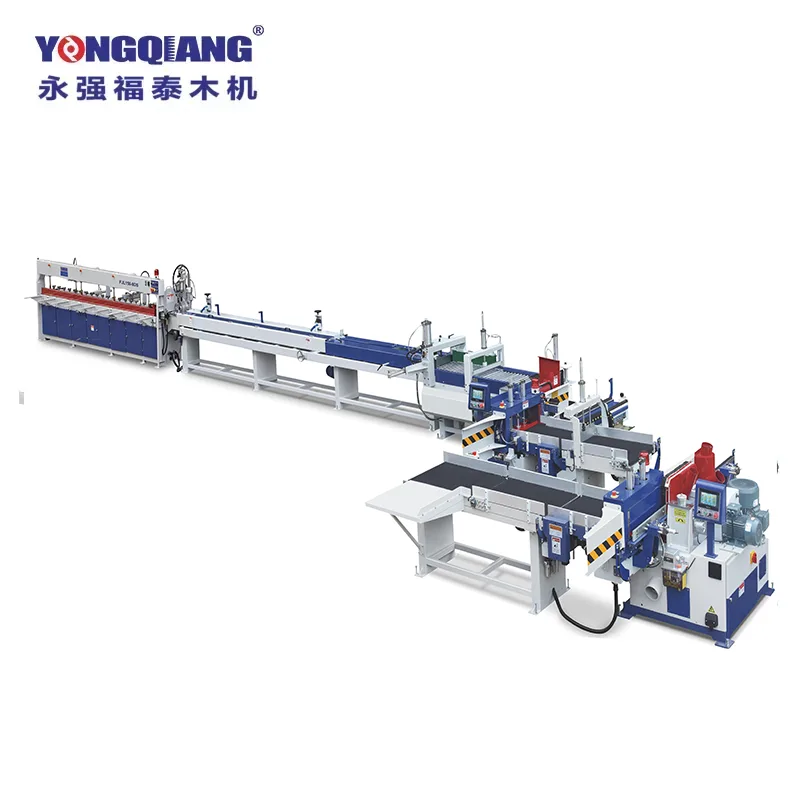

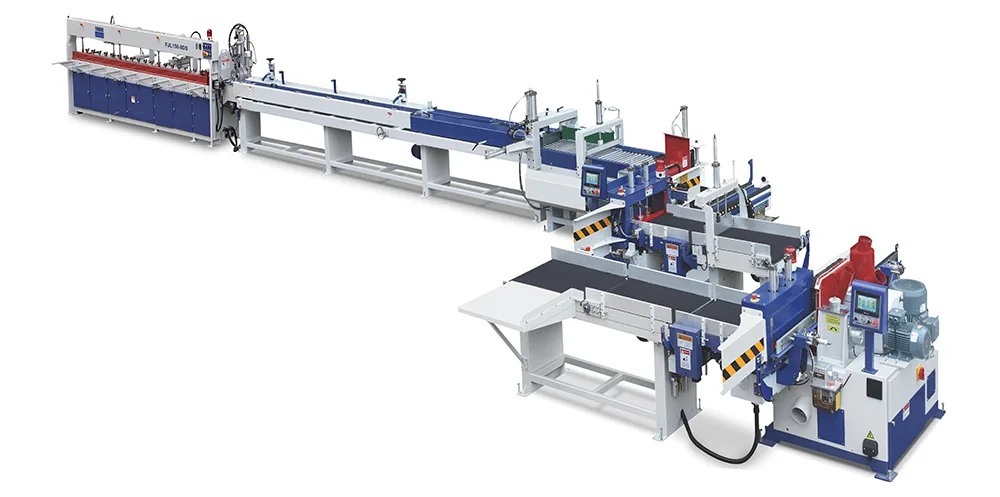

Fully Automatic Finger Jointing Lines

Yongqiang Futai Fully Automatic Finger Jointing Lines | Fully Closed Loop Intelligent Finger Joint Wooden Square Processing Line.

Yongqiang Futai is a high-tech enterprise in the Chinese woodworking machinery industry, specializing in the research and production of gear joints, finger joints, and integrated wood production lines for more than 30 years. It has an independent research and development center, CNC machining workshop, precision assembly line, and full performance testing platform.

It holds multiple invention patents and practical new patents for gear joint equipment, and has passed international certifications such as ISO9001 and CE. Its products are exported to more than 60 countries and regions in Europe, Southeast Asia, the Middle East, Africa, and the Americas, serving over 2000 wood processing enterprises.

We insist that every fully automatic gear connection production line is designed by senior engineers, from structural mechanics, transmission system, glue control, docking accuracy to safety protection and energy consumption optimization, all built according to industrial grade continuous operation standards.

Before leaving the factory, it undergoes 72 hours of full load trial operation, precision verification, stability testing, and safety inspection to ensure long-term stable operation of the equipment in different voltages, working conditions, and climate environments around the world.

This line achieves unmanned, intelligent, and high-precision processing of the entire process from short wood/corner materials to finished long wood blocks, solving the industry pain points of low tooth joint efficiency, high labor costs, poor splicing strength, insufficient stability, and low waste utilization rate in traditional methods.

This production line integrates automatic feeding, alignment, comb teeth, gluing, docking, curing, sizing, discharging, and palletizing, with full PLC intelligent control throughout the process. It is suitable for global mainstream woods such as pine, fir, poplar, rubberwood, and hardwood, and can process short material extensions, standard wood blocks, integrated materials, furniture materials, construction wood blocks, etc.

The finished products do not crack or deform, have high strength, precise dimensions, and comply with EU CE, ISO, and multiple national industrial safety and environmental standards. It is the core equipment for small and medium-sized wood processing plants worldwide to achieve cost reduction and efficiency improvement, waste recycling, and large-scale production.

Core advantages of fully automatic gear connection production line

1. Fully automated throughout the entire process, truly unmanned production

The Yongqiang Futai fully automatic finger jointing lines adopts a fully closed-loop intelligent assembly line design, where the wood is loaded in one go and the equipment automatically completes:

-Automatic sorting and conveying

-Flatten both ends to make them level

-Precision double ended comb teeth

-Quantitative and uniform application of adhesive

-Precise high-voltage docking

-Constant temperature rapid curing

-CNC fixed length cutting

-Automatic discharge and palletizing

No manual intervention is required throughout the process, and only one person is needed to monitor the entire line. One device can replace 4-6 skilled workers, significantly reducing labor costs, minimizing human errors, and improving production consistency and stability.

2.Ultra high processing precision, joint strength close to that of natural wood

-Comb tooth accuracy: ± 0.02mm, regular tooth shape, minimal fiber damage

-Glue application control: intelligent quantitative glue application, no overflow or leakage, uniform glue layer

-Docking pressure: Hydraulic constant pressure docking, tight bite, high bonding strength

-Finished product strength: The tensile/bending strength of the joint is ≥ 90% of the original wood, and it does not crack, fracture, or deform

It can be directly used in high demand scenarios such as load-bearing wooden blocks, furniture frames, integrated materials, whole house decoration, and wooden structure engineering.

3.Wide material adaptation, 100% recycling of short/corner materials

-Raw materials: 150mm or more short wood, corner material, waste wood, defective material

-Material: pine, fir, poplar, birch, rubberwood, hardwood, etc

-Cross section: 20 × 20mm -150 × 150mm (customizable for larger sizes)

-Finished product length: 400mm -6000mm (CNC adjustable)

Truly realizing the long-term use of short materials, turning waste into treasure, and increasing wood utilization by 30% -50%, significantly reducing raw material procurement costs.

4.Environmentally friendly and low-noise, in line with global environmental standards

-Dust removal: Central dust removal interface+sealed dust-proof design, less dust

-Noise: ≤ 70dB, silent operation, no disturbance to the public

-Glue: Environmentally friendly woodworking glue, recycled residue, zero waste

-Emissions: No wastewater, no exhaust gas, in compliance with EU and national environmental requirements

Core technical parameters

Application scenarios

1.Building wood processing: building timber, formwork, load-bearing integrated materials, prefabricated timber structures

2.Manufacturing of solid wood furniture: furniture frames, table legs and chair legs, solid wood panel substrates, cabinet door long materials

3.Recycling of waste wood: recycling of old wood from construction sites, reuse of furniture factory scraps, and recycling of pallet materials

4.Integrated materials and whole house decoration: solid wood lines, door and window materials, stair handrails, wall panel substrates

Processing of exported wooden products: finger jointed wooden blocks, integrated materials, and packaging long materials that meet international

Purchase value

The Yongqiang Futai fully automatic finger jointing lines is an industrial grade, intelligent, high-efficiency, and high return wood tooth connection core equipment. With six core advantages of unmanned entire process, ultra-high precision, high strength, wide adaptability, energy conservation and environmental protection, and global after-sales service, it helps global wood processing enterprises:

-Reduce labor by 70%+

-Increase production capacity by 50% -100%

-Improve wood utilization rate by 30% -50%

-Reduce overall costs by 20% -40%

-Stable product quality, expanding high-end and export markets

Source factory direct sales, no intermediary price difference, customizable, fast delivery, and stable after-sales service, are the preferred brands for global large, medium, and small wood processing plants, furniture factories, and construction and building materials enterprises to invest in gear connection production lines.
