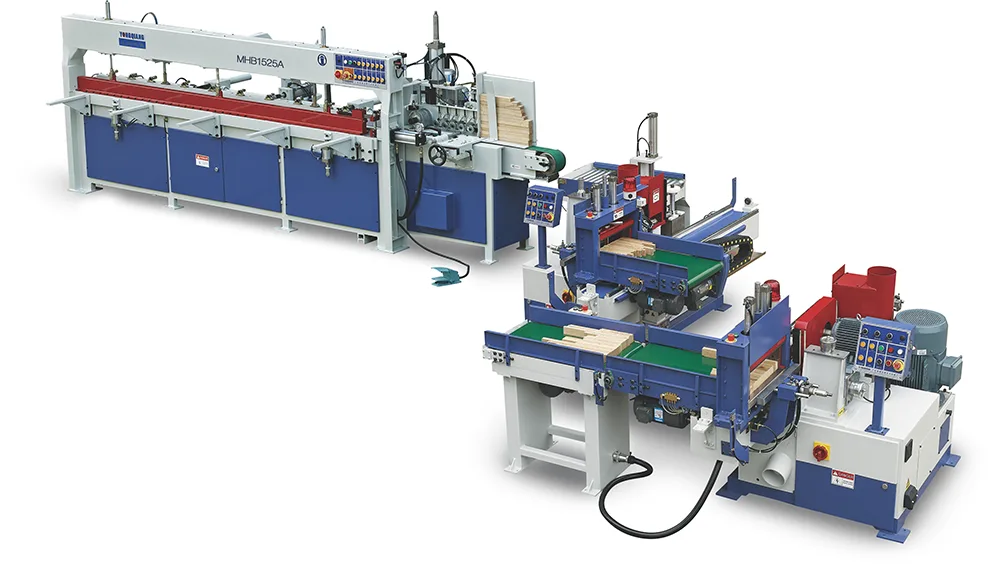

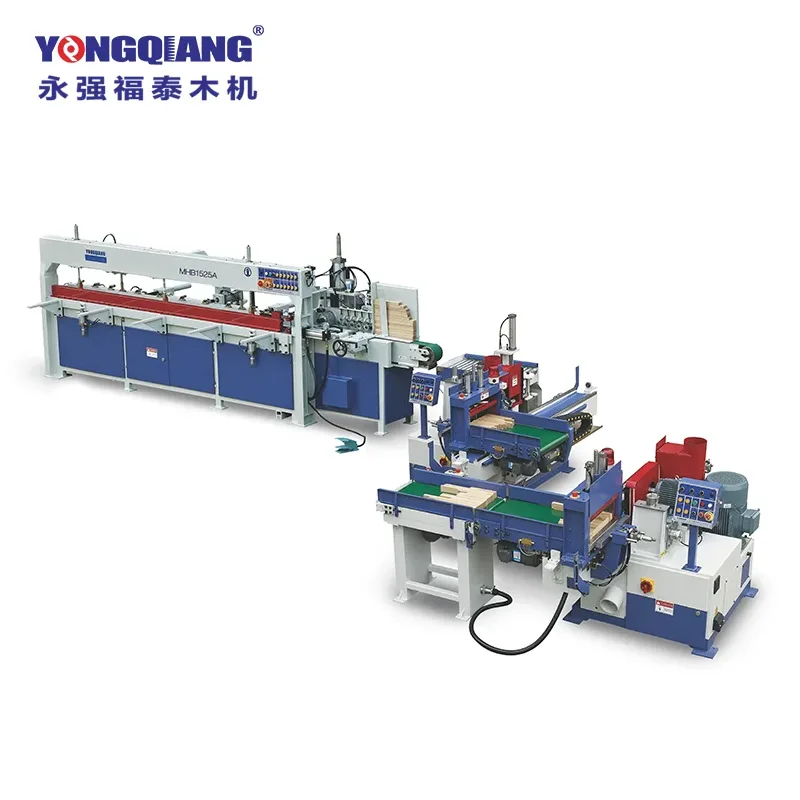

Short Timber Finger Jointing Lines

Yongqiang Futai has been deeply engaged in the research and development of intelligent woodworking machinery such as Short Timber Finger Jointing Lines for more than 20 years, with independent invention patents and full process precision intelligent manufacturing capabilities. It specializes in creating fully automatic short wood tooth connection production lines for global wood processing factories, solid wood furniture factories, and construction wood structure enterprises, completing one-stop short wood alignment, precision comb teeth, automatic gluing, high-pressure docking, fixed length cutting, and finished product discharge in a fully closed-loop continuous operation. The equipment significantly improves the utilization rate of small diameter wood and corner short materials, reduces the loss of logs and labor costs, and has a splicing strength far exceeding that of native wood. It is suitable for deep processing of solid wood short materials from multiple tree species and specifications worldwide. It is a core intelligent equipment for overseas wood factories to reduce costs and increase efficiency, and standardize production on a large scale. The entire process complies with international woodworking processing safety standards and environmental production norms, and helps promote the green and sustainable development of the global wood industry.

Equipment core technology advantages

1.Full process intelligent and fully automatic short wood tooth connection assembly line, unmanned continuous and efficient production.

The Yongqiang Futai short wood tooth joint integrated production line is equipped with a PLC intelligent numerical control bus control system, which integrates adaptive automatic feeding, precise head cutting, bidirectional high-precision comb tooth milling, constant temperature and uniform glue coating, servo top pressure docking, intelligent fixed length cutting, and automatic finished product stacking full module linkage.

The entire short wood finger joint production line does not require multiple people to be on duty, and only one operator is needed for a single device. The 8-hour continuous stable production capacity far exceeds that of traditional semi-automatic equipment.

The efficiency of short wood extension processing has been improved by more than 85%, completely solving the pain points of low efficiency, large errors, and unstable production capacity caused by manual comb teeth and manual splicing. It is suitable for large-scale order production in overseas wood industry.

2.Micro scale precision tooth processing, solid wood finger joint structure is super strong, stable and durable.

Using patented curve comb milling technology, the tooth angle is precisely controlled within the golden range of 9 ° -12 °, and the servo linear feed positioning accuracy is ± 0.005mm, with a repeated positioning error of ≤± 0.002mm. The tooth profile of the short wood end has a very high degree of bite fit, and the bonding contact area is more than 4 times larger than that of traditional flat joints.

After high-pressure constant temperature docking and solidification, the bending, tensile, and cracking resistance of the finger joint board is better than that of the entire log, without glue cracking, deformation, or loosening. It is stable and reliable for long-term load-bearing use, and perfectly suitable for high demand scenarios such as building structural square wood, solid wood doors and windows, furniture load-bearing substrates, and floor blanks.

3. Ultra high utilization rate of wood, ultimate cost saving of raw wood materials

This woodworking short material recycling tooth joint production line is deeply adapted to various types of short wood materials, wood corner waste, and waste recycled wood blocks with a depth of over 150mm, maximizing the utilization of low value short material resources.

The comprehensive wood yield rate is increased by 19% compared to traditional processing. Significantly reducing the consumption of timber logging, helping overseas factories achieve green and low-carbon production, reducing raw material procurement costs, transforming discarded short wood into high-value long specification solid wood profiles, expanding the profit space of the wood industry, and aligning with the global trend of environmental forestry development.

4.Durable heavy-duty body+imported core accessories, ultra long, stable and low fault operation

The whole machine is made of thickened heavy-duty steel structure welded together, and operates continuously at high speed without shaking or deformation; The core milling cutter, servo motor, pressure component, and conveyor rail are all equipped with international high-quality wear-resistant and durable accessories, combined with intelligent fault self inspection and real-time operation monitoring system.

The Yongqiang Futai short wood tooth connection production line has a long continuous service life, simple and convenient daily maintenance, and a much lower failure rate than similar models in the industry. Overseas factories operate for a long time without frequent downtime losses, ensuring stable delivery capacity throughout the year.

5.Wide range specification adaptation+flexible customization, suitable for various global wood processing needs

The production line can flexibly process global mainstream solid wood species such as pine, poplar, birch, rubberwood, and hardwood, suitable for short wood with a width and height of 20-200mm. The finished product extension specifications are freely adjustable, and the longest solid wood profile can be customized to be more than 4 meters long.

Support customized assembly line length, pressure tonnage, feeding speed, and high-frequency curing supporting modules as needed, compatible with different national voltage and industrial standards, and can be customized to fit the layout of overseas factory buildings. One stop shop to meet the short wood tooth connection processing needs of small and medium-sized processing plants and large wood industry parks in all scenarios.

6.Energy saving, low consumption, environmentally compliant, in line with global wood export production standards

The equipment is optimized with energy-saving transmission structure, resulting in lower electrical energy loss. It is equipped with an environmentally friendly and low odor woodworking adhesive system, with no excessive emissions of exhaust gas and dust.

The operation noise is controllable and fully complies with safety production and environmental regulations around the world, such as the European Union, Southeast Asia, and the Americas. Intelligent moisture content closed-loop control ensures a stable moisture content of ± 1.5% in wood processing. The finished boards are not easily affected by moisture and deformation, and the quality of exported boards is stable and meets standards. It is easy to pass overseas wood product quality inspection certification.

Complete process flow of Yongqiang Futai short wood tooth connection production line

1.Automatic sorting and feeding: Short wood materials are transported in an orderly manner, with adaptive material sorting calibration to prevent material jamming and stacking problems

2.High precision head to head cutting: Flatten both ends of the wood, unify the reference size, and ensure subsequent tooth connection accuracy

3.Double directional precision comb milling: patented cutting tools uniformly mill standard finger shaped tenon teeth without damaging the native fibers of the wood

4.Constant temperature precise automatic glue coating: evenly spray environmentally friendly special glue, intelligent control of glue amount, no overflow or leakage of glue

5.High voltage servo docking and pressure maintenance: high-power uniform top pressure, constant temperature curing and bonding, tight and firm structure

6.Precise cutting and segmentation of fixed length: Cut standard finished long materials according to order requirements

7.Automatic discharge and orderly stacking: finished products are orderly output and directly enter the subsequent polishing and splicing processes

The entire short wooden comb tooth splicing assembly line is seamlessly connected in a closed loop, with no human intervention or pre cutting points throughout the process, and the consistency of standardized products is extremely strong.

Core technical parameters of equipment

Global application scenarios

Solid wood furniture factory: furniture load-bearing materials, frame substrates, and recycled processing of long and short specification solid wood components

Building timber structure industry: building timber, engineering timber beams, door and window structural materials, prefabricated timber structure materials

Floor and wall panel enterprises: production of solid wood floor blanks, integrated wall panel substrates, and whole house solid wood panels

Wood recycling and processing: recycling of waste wood, factory scraps, and small-diameter short wood

Tray packaging box factory: Batch production of solid wood packaging square materials and logistics tray special long materials with toothed joints

Overseas Wood Industry Park: Large scale Short Wood Recycling Production Line, Integrated Processing of Whole House Solid Wood Building Materials

After-sales service guarantee

Yongqiang Futai is a professional manufacturer of fully automatic woodworking gear joint equipment in China, holding multiple national invention patents for short wood gear joint integrated production lines.

It has been focusing on the research and development, production, and export of woodworking intelligent assembly lines for decades. We have a standardized precision production workshop, a professional technical R&D team, and a rigorous factory quality inspection system.

Each set of short wooden finger joint production lines undergoes multiple rounds of no-load and load full process testing to meet quality standards before they can be exported to the world.

We provide global customers with free factory layout planning, on-site equipment installation and commissioning, professional training for operators, lifelong technical remote guidance, and one-stop overseas localized parts supply services.

Customers from Southeast Asia, Europe, America, and Oceania can enjoy fast after-sales response, lifelong equipment maintenance and upgrading, long-term stable support for overseas factory production and operation, and become a trusted high-quality partner for short wood tooth connection production lines in the global wood industry.

Choose equipment

Yongqiang Futai supports direct delivery of standard models in stock, exclusive customization of special specification short wood tooth joint production lines, and packaging of complete wood production line supporting solutions.

It also supports offshore customs declaration and one-stop cross-border logistics docking. Global wood procurement companies, engineering contractors, and wood processing plants can submit their requirements online to obtain exclusive quotations, equipment plans, capacity estimates, and plant supporting planning.

Choose the Yongqiang Futai fully automatic short wood tooth connection production line, use intelligent precision woodworking equipment, activate short wood resources, reduce production costs, improve product quality, and seize the dividends of the global solid wood recycled board market!
